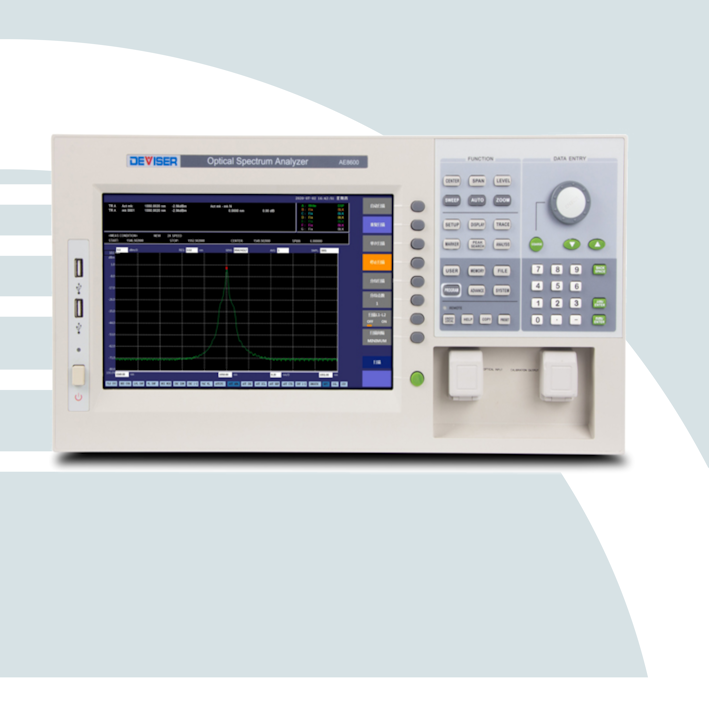

The AE8600D Optical Spectrum Analyzer (OSA) is a high-precision diffraction-grating analyzer designed for advanced optical measurement applications across the 600 nm to 1700 nm wavelength range. It delivers high wavelength accuracy, dynamic range, spectral resolution, power sensitivity, and scanning speed.

Engineered for reliability and stability, the AE8600D offers ultra-fast spectral sweeping and a comprehensive suite of built-in analysis functions, including DFB, FP, LED, POWER, WDM, and EDFA testing. These tools make it ideal for R&D laboratories, manufacturing, and fiber-optic component evaluation.

With its versatile data export options and intuitive analysis interface, the AE8600D enables precise and efficient optical testing for 600nm to 1700nm. Whether for laser characterization, optical amplifier analysis, or wavelength monitoring, this OSA delivers the accuracy, speed, and dependability required by modern photonics professionals.

Key Features and Specifications:

• Wavelength Range: 600 nm to 1700 nm

• Wavelength Accuracy: ±0.01 nm

• Resolution Bandwidth: 20 pm to 2 nm

• Dynamic Range: 78 dB (typical)

• Optical Input: Single Mode and Multimode.

• Input Power Range: +20 dBm to -90 dBm

• Stray Light Suppression Ratio: >70 dB, improving measurement accuracy.
