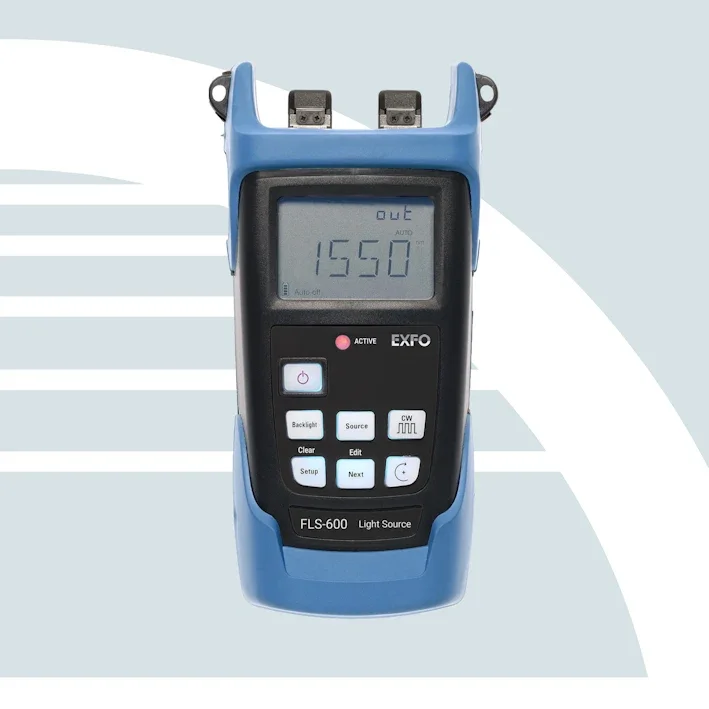

The EXFO FLS-600 has up to three singlemode wavelengths (1310 nm, 1550 nm, and 1490 nm or 1625 nm) on a single port, or four wavelengths (850/1300 nm and 1310/1550 nm) on two ports.

Multimode fibers are the trickiest links to test because the test results are highly dependent on each device’s output conditions. Troubleshooting with a different unit than the construction unit may mislead the technician or result in the inability to find the fault, creating longer network downtimes. For multimode fibres, EXFO recommends using an external launch mode conditioner that is encircled flux (EF) compliant. The encircled flux standard (as recommended in TIA‑568 via TIA‑526‑14‑B and IEC 61280‑4‑1 Ed. 2.0) is a way of controlling the source launch conditions so that Tier-2 troubleshooting can be performed with maximum accuracy and consistency.

Features

• Auto-wavelength switching

• Calibrated wavelengths : 850 / 1300 / 1310 / 1490 / 1550 / 1625nm

• Fibre Type : Singlemode / Multimode
