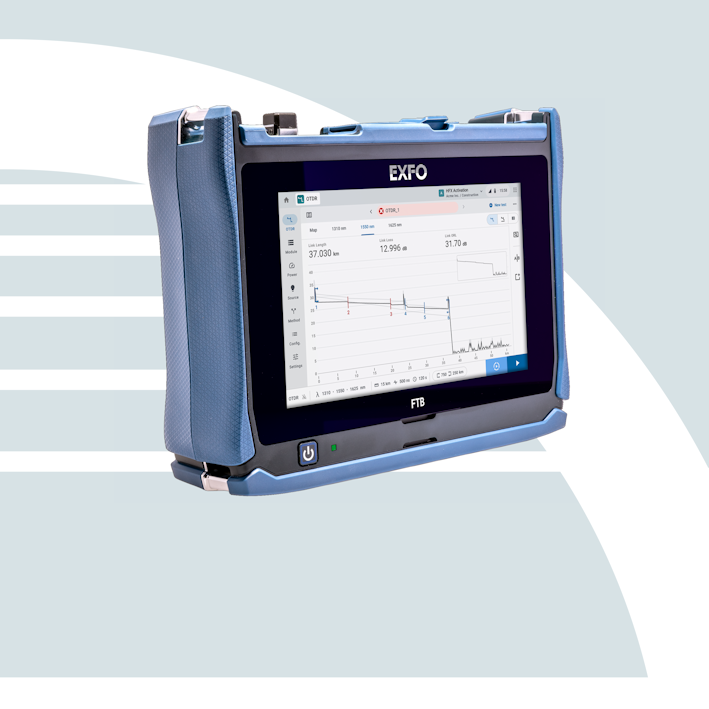

A portable medical device with a touchscreen displaying graphs and data, branded EXFO, used for fiber optic testing.

EXFO FTB Lite 735D OTDR

The EXFO FTB Lite 735D optimized for Metrocore and FTTx fibre deployment and trouble shooting. It is a high-resolution dedicated OTDR with always‑on mobile connectivity and optimized usability to carry out any metro network testing and splitter characterization in the most efficient, compliant and secure way.

Features

  • Dynamic range up to 45 dB for up to 144 km

  • Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.5/2.0 m in SM and MM, PON dead zone 25 m

  • FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

  • Live fibre testing

  • 8-inch (203mm) color touchscreen for use in bright sunlit environments or any environment where you conduct tests
