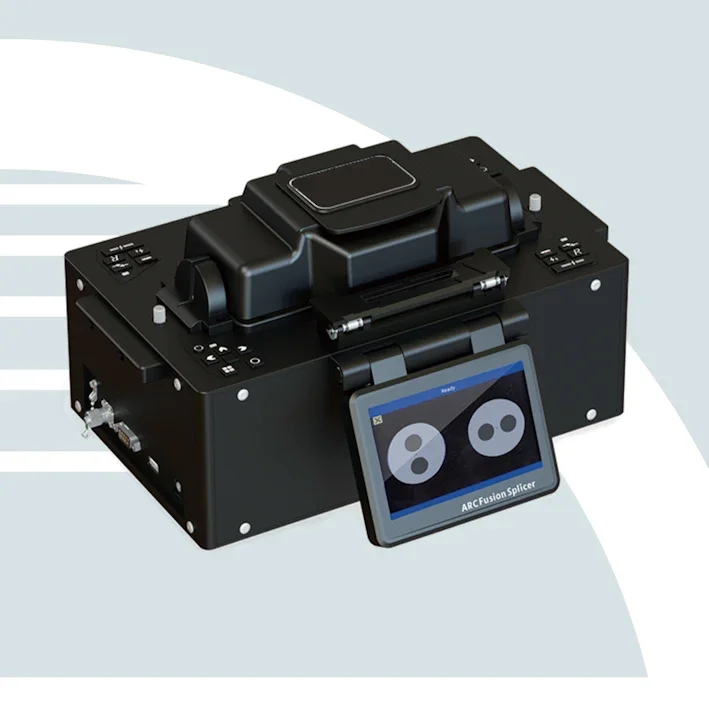

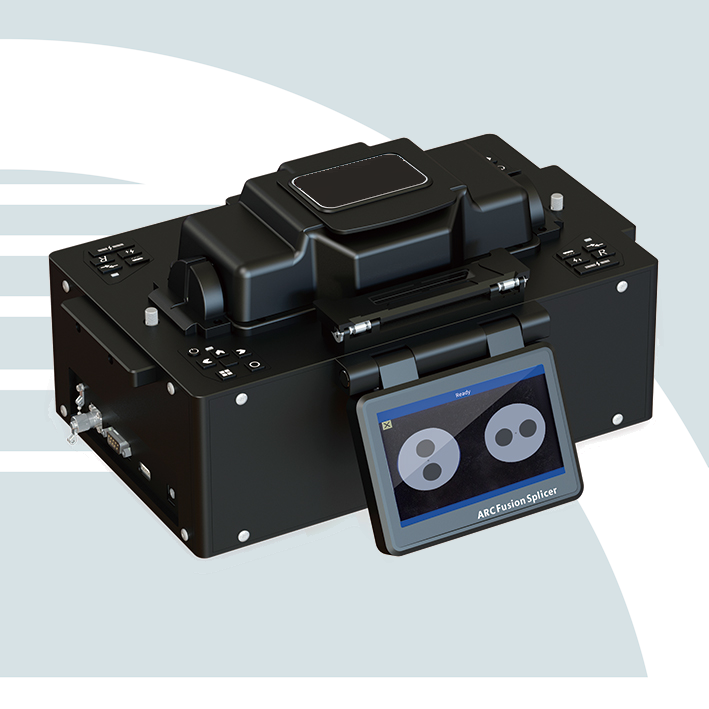

The new S12PM fusion splicer integrates leading alignment technologies for accurate and low loss splicing for Panda and other polarization maintaining specialty fibres

Key Features and Specifications:

• Direct dual fiber end face, profile Alignment with Z pivoting

• SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655), Panda & Bow-Tie PM fibres

• Cladding Diameter 80～150µm

• Coating Diameter 160～900µm

• Automatically Fibre Identify SMF, MMF, NZDS, DS, PANDA PMF

• Typical Splice Loss SM: 0.02dB；MM: 0.01dB；DS: 0.03dB；NZDS: 0.03dB；PMF 0.05dB

• EXtinction Ratio 32dB(PANDA)
